SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA13-01 – 23 BITS
Brand : Codechamp
The COA13-01 is a high-precision single-turn absolute optical encoder designed to meet the most demanding industrial requirements.
With its extended resolution and stainless steel construction, it ensures stable, reliable and durable angular measurement, even in harsh environments.
With a resolution of up to 23 bits and an accuracy of ±25″, the COA13-01 provides fine detection of rotational movement over a full rotation (0 to 360°).
Its SSI2 / SSI serial interface and RS422 output ensure secure data transmission and seamless integration into any automated system.
Note: Its non-magnetic design makes it immune to electromagnetic interference, ensuring stable measurement in critical industrial environments.
With its extended resolution and stainless steel construction, it ensures stable, reliable and durable angular measurement, even in harsh environments.
With a resolution of up to 23 bits and an accuracy of ±25″, the COA13-01 provides fine detection of rotational movement over a full rotation (0 to 360°).
Its SSI2 / SSI serial interface and RS422 output ensure secure data transmission and seamless integration into any automated system.
Note: Its non-magnetic design makes it immune to electromagnetic interference, ensuring stable measurement in critical industrial environments.
TECHNICAL CHARACTERISTICS
| Type | Absolute optical single-turn |
| Max. resolution | 23 bits |
| Accuracy (arc sec.) | 25 |
| Power supply | + 5V |
| Interface | SSI2 or SSI |
| Max. speed | 300 rpm |
| Axial load | 5N |
| Operating temperature | -45°C to +105°C |
| Protection rating | 50 |
| Outer diameter | 34 mm |
| Housing material | Stainless steel |
ADVANTAGES OF OPTICAL ENCODERS
- Ultra-fine angular resolution up to 23 bits
- Stainless steel construction for maximum durability
- Reliable and fast data transmission via SSI / RS422
- High electromagnetic immunity
- Guaranteed operation from –45 °C to +105 °C
- Compact and easy to integrate
- Customisation available on request (connectivity, interface, IP65, etc.)
Ideal for applications where stability and precision of single-turn measurement are essential to overall system performance.
Application areas
The COA13-01 is used in environments where absolute angular measurement is critical:
- Industrial automation
- Machine tools and positioning systems
- Robotics and servo motors
- Precision motion control
- Instrumentation and calibration systems
Customisation options
Our engineers can tailor the COA13-01 to your specific requirements:
axial or radial connectors, customised cables, CANopen or analogue interface, bespoke mechanical tolerances, or enhanced protection up to IP65.
Each encoder is tested to ensure signal stability and long-term reliability.
OPTICAL ENCODERS
SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA11-01 – 22 BITS
Codechamp
Single-turn
Solid shaft
OPTICAL ENCODERS
MULTI-TURN ABSOLUTE OPTICAL ENCODER COM23-01 – 35 BITS
Codechamp
Multi-turn
Solid shaft
OPTICAL ENCODERS
MULTI-TURN ABSOLUTE OPTICAL ENCODER COM09-01 – 25 BITS
Codechamp
Multi-turn
Solid shaft
OPTICAL ENCODERS
PANCAKE ABSOLUTE OPTICAL ENCODER CAP50-01 – 23 BITS
Codechamp
Single-turn
Pancake
OPTICAL ENCODERS
PANCAKE ABSOLUTE OPTICAL ENCODER CAP40-01 – 23 BITS
Codechamp
Single-turn
Pancake
OPTICAL ENCODERS
HOLLOW SHAFT ABSOLUTE OPTICAL ENCODER COA63-01 – 25 BITS
Codechamp
Single-turn
Hollow shaft
OPTICAL ENCODERS
HOLLOW SHAFT ABSOLUTE OPTICAL ENCODER COA40-01 – 25 BITS
Codechamp
Single-turn
Hollow shaft
OPTICAL ENCODERS
HOLLOW SHAFT ABSOLUTE OPTICAL ENCODER COA34-01 – 25 BITS
Codechamp
Single-turn
Hollow shaft
OPTICAL ENCODERS
SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA23-02 – 24 BITS
Codechamp
Single-turn
Solid shaft
OPTICAL ENCODERS
SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA23-01 – 23 BITS
Codechamp
Single-turn
Solid shaft
OPTICAL ENCODERS
SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA15-01 – 23 BITS
Codechamp
Single-turn
Solid shaft
OPTICAL ENCODERS
SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA12-01 – 22 BITS
Codechamp
Single-turn
Solid shaft
OPTICAL ENCODERS

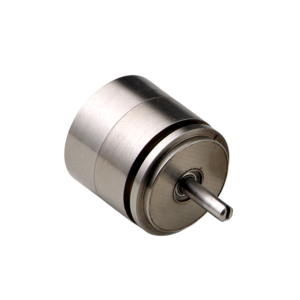

SINGLE-TURN ABSOLUTE OPTICAL ENCODER COA09-01 – 21 BITS
